🐟 Smart Solar-Assisted Seafood Drying
The Smart Fish Dryer Hybrid solar fish dryers are engineered to provide a hygienic and controlled drying solution for fish and seafood products. Combining solar energy with a backup heating system, they ensure reliable and efficient drying performance even under varying weather conditions. With optimized airflow and ventilation, these dryers minimize contamination, reduce spoilage, and deliver uniform drying for consistently high-quality output. Ideal for coastal communities, fisheries, and seafood processors, they help enhance product value, improve hygiene standards, and extend shelf life.
Core Capabilities
Drying Performance
- Temperature: 45–80°C (solar), up to 100°C (assisted)
- Moisture reduction: 70–90%
- Drying time: 6–24 hours (fish type dependent)
- Uniform texture, improved color, export-grade finish
Smart Automation
- Digital PID temperature control
- Humidity sensors for precision drying
- Programmable batch cycles
- IoT-enabled remote monitoring (optional)
Heating Integration
- Solar thermal as primary heat
- Auxiliary heating
- Indirect heating – zero smoke contamination
- Automatic mode switching
Sustainability
- Reduces drying time by 50–70%
- Eliminates open-sun contamination
- Improves product value for export
- Low operational cost
📐 Engineering Specifications
| Parameter | Specification |
|---|---|
| System Type | Smart Solar Fish Dryer (Tunnel / Chamber Type) |
| Drying Capacity | 25 kg – 2000 kg per batch |
| Structural Frame | GI / MS (Hot Dip Galvanized) |
| Inner Chamber | Food-grade Stainless Steel (SS 304) |
| Tray Material | SS 304 / Food-grade Mesh |
| Airflow System | Forced Convection (High-efficiency blowers) |
📍 Application Scope
Marine Fish
Coastal fish processing units
Inland Fish
Freshwater fish drying
Shrimp & Prawn
Premium value-added drying
Export Industries
Dry fish for global markets

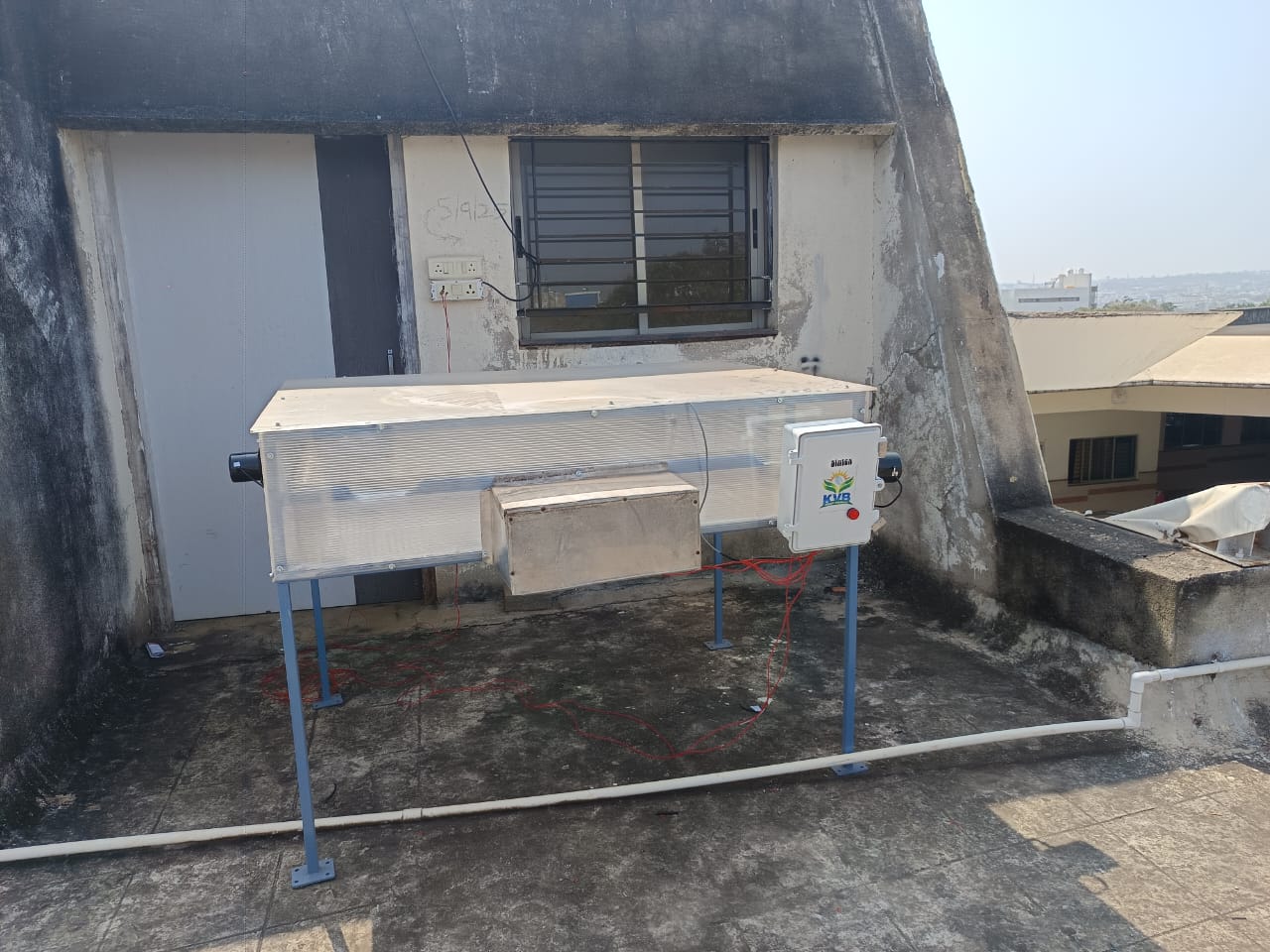

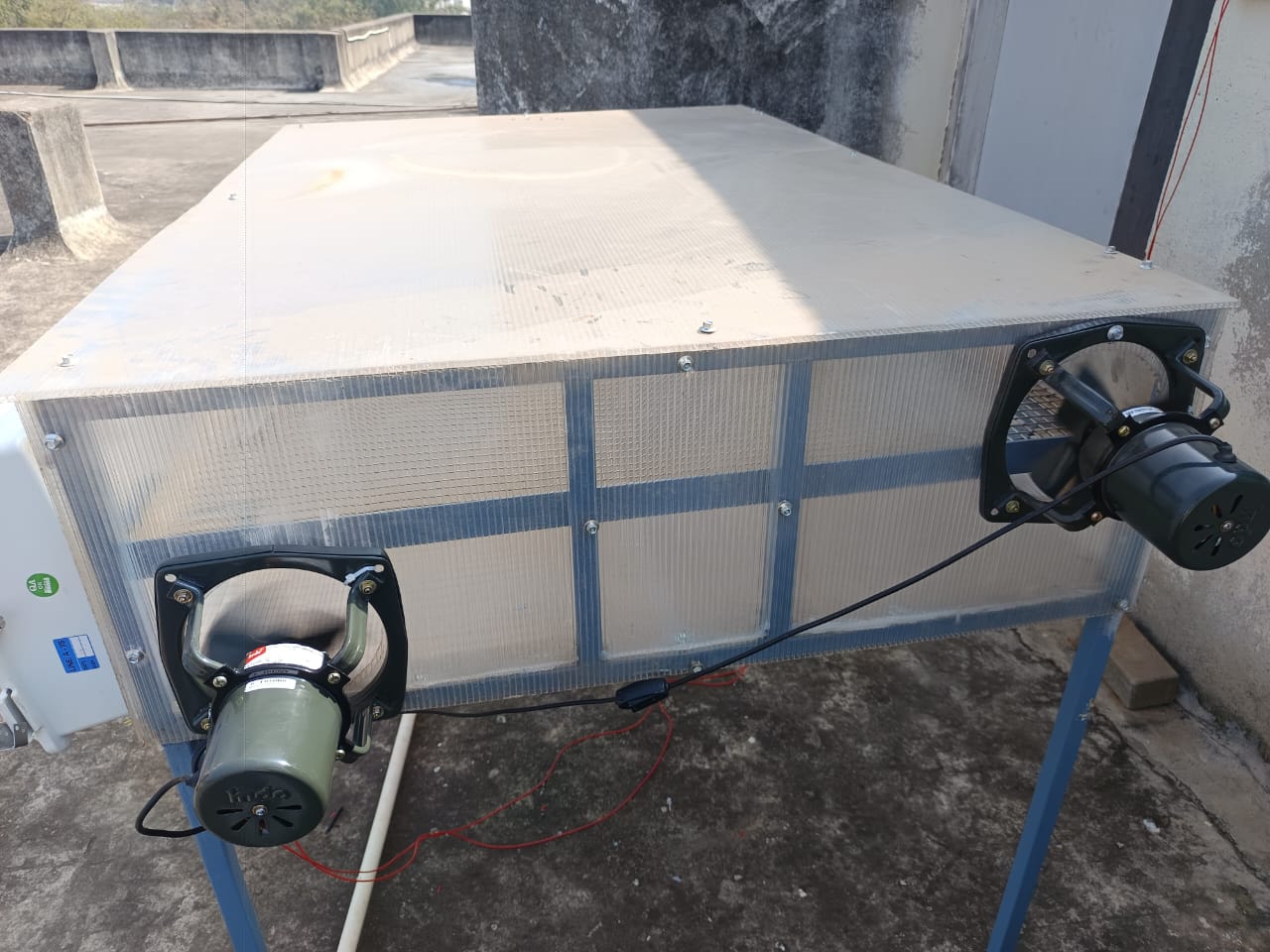

System in Action
