⚡ Smart Solar + Biomass Integration
The Smart Solar Tunnel Dryer (STD) is an intelligent, high capacity drying system designed for continuous industrial and agro processing applications.By integrating solar thermal energy with a Thermal Calorific Unit (TCU) or biomass heating system, the system ensures 24×7 uninterrupted drying under all weather conditions.The “Smart” architecture enables optimized temperature control, uniform airflow distribution, and efficient energy utilization, resulting in consistent product quality,faster drying cycles,and higher productivity.
Core Capabilities
Thermal & Drying Performance
- Solar Mode: 50–75°C | Smart Mode: 60–120°C
- Moisture reduction: up to 80–95%
- 40–70% faster than open sun drying
- 24×7 continuous operation enabled
Smart Thermal Calorific Unit (TCU)
- Indirect hot air generation, 100–1000 kW
- PID / sensor‑based smart control
- Demand‑based heat supply
- Fully synchronized with dryer airflow
Biomass Heating System
- Fuel: briquettes / agro‑waste (rice husk, sawdust, bagasse)
- High‑efficiency combustion (≥80%)
- Manual / semi‑auto / auto feeding
- Night & low‑solar backup
Sustainability & Financial Impact
- Reduces post‑harvest losses by 30–60%
- Year‑round production, low‑cost renewable fuel
- Payback: 1.5–3 years | System life: 15–20 years
📐 Engineering Specifications
| Parameter | Specification |
|---|---|
| System Type | Smart Solar Tunnel Dryer (Solar + Biomass/TCU Integrated) |
| Dryer Length | 10 m – 40 m (customizable) |
| Dryer Width | 3 m – 7.5 m |
| Dryer Height | 2.5 m – 3.5 m |
| Batch Capacity | 500 kg – 5000 kg (fresh input) |
| Structural Frame | Galvanized Iron (GI) / Mild Steel (MS) |
| Covering Material | UV Stabilized Polycarbonate |
| Drying Platform | Concrete / Paver Blocks / Elevated Tray System |
| Tray Configuration | Trolleys / Perforated SS or Aluminum Trays |
| Airflow Mechanism | Forced Convection (high‑efficiency blowers) |
| Airflow Pattern | Horizontal / Cross‑flow distribution |
🔥 Smart Thermal Integration
Smart Thermal Calorific Unit (TCU)
- Heating Type: Indirect Hot Air Generation
- Heat Output Range: 100 kW – 1000 kW (customized)
- Control System: Smart PID / Sensor‑based control
- Heat Delivery: Uniform hot air distribution
- Integration: Fully synchronized with dryer airflow system
Biomass Heating System
- Fuel Type: Briquettes / Agro‑waste (rice husk, sawdust, bagasse)
- Furnace Type: High‑efficiency combustion system
- Combustion Efficiency: ≥ 80%
- Feeding Mechanism: Manual / Semi‑auto / Fully automatic
- Role: Night operation & smart load support
⚙️ System Architecture & Operating Modes
| Mode / Feature | Description |
|---|---|
| Solar Mode | Uses solar energy as primary heat source |
| Smart Assisted Mode | Automatically supplements heat using TCU/biomass during fluctuations |
| Biomass Mode | Ensures uninterrupted drying during night or low solar conditions |
| Key Components | Solar Tunnel Structure • Tray/Trolley System • High‑efficiency Blowers • Smart TCU • Biomass Furnace • Heat Exchanger • Insulated Air Ducts • Smart Control Panel (Temp + Airflow + Sensors) • Optional IoT Monitoring |
📍 Key Applications
Fruits
Mango, banana, pineapple, papaya
Vegetables
Onion, garlic, chili, tomato
Spices
Turmeric, pepper, cardamom
Herbs & Medicinal
Medicinal plants, leaves
Fish & Meat
Fish, meat processing
Agro‑products
Grains, seeds, pulses
🌱 Sustainability & Financial Benefits
| Parameter | Value |
|---|---|
| Fuel Savings | 100% displacement of fossil fuels (solar mode) / 50–80% in hybrid mode |
| CO₂ Reduction | 50 – 300 tons per year (depending on scale) |
| Payback Period | 1.5 – 3 years (based on fuel cost & throughput) |
| System Lifespan | 15 – 20 years |
| Installation Time | 2 – 4 weeks (civil foundation required) |
| Maintenance | Periodic sheet cleaning (3–5 yrs), furnace cleaning, blower service, sensor calibration |
🚀 Advanced Smart Add‑ons
| Add‑on | Benefit |
|---|---|
| Fully automatic biomass feeding system | Reduces manual intervention, improves consistency |
| IoT‑based remote monitoring dashboard | Real‑time data, alerts, performance analytics |
| AI‑based drying optimization | Self‑learning algorithm minimizes energy use |
| Thermal Energy Storage (Sand Battery) | Store excess heat for extended operation |
| Solar PV integration for auxiliary loads | Complete off‑grid / hybrid operation |

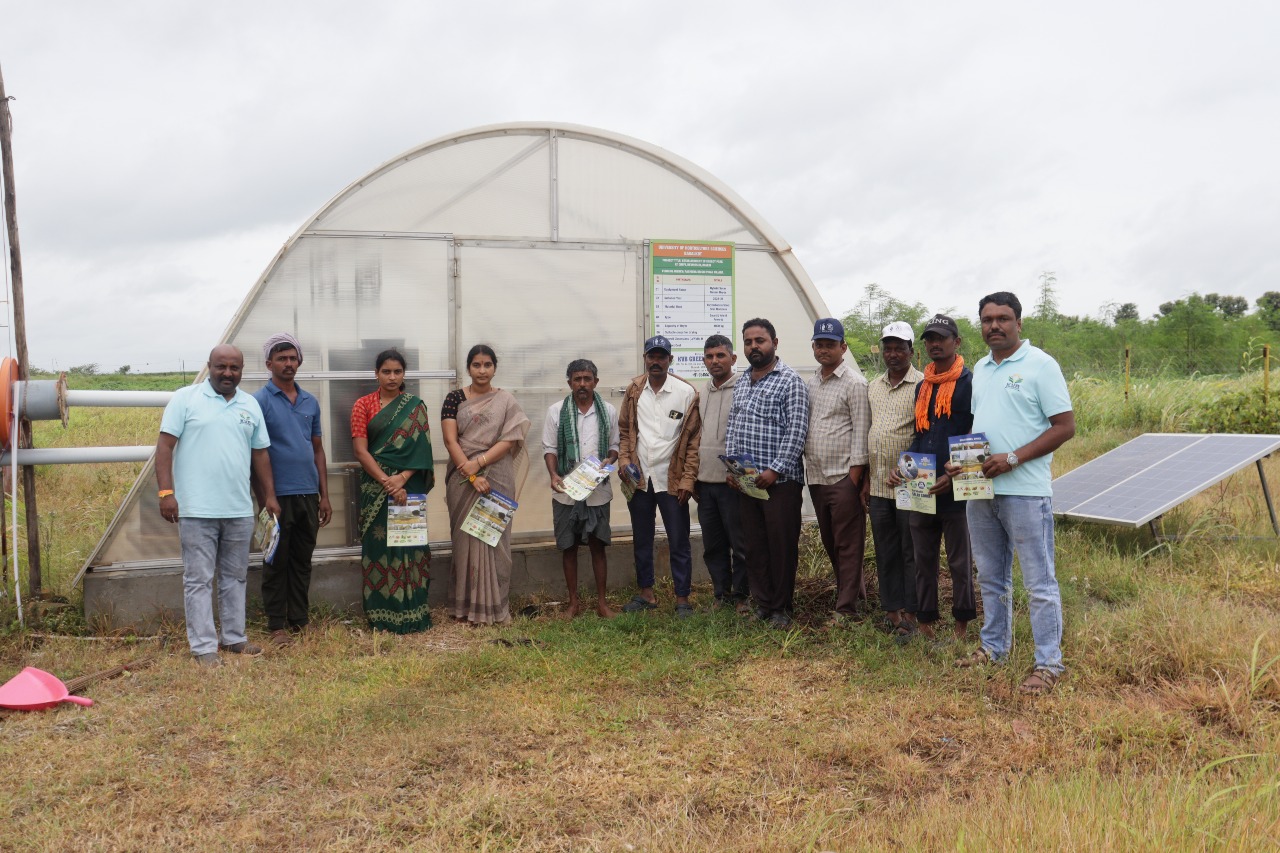

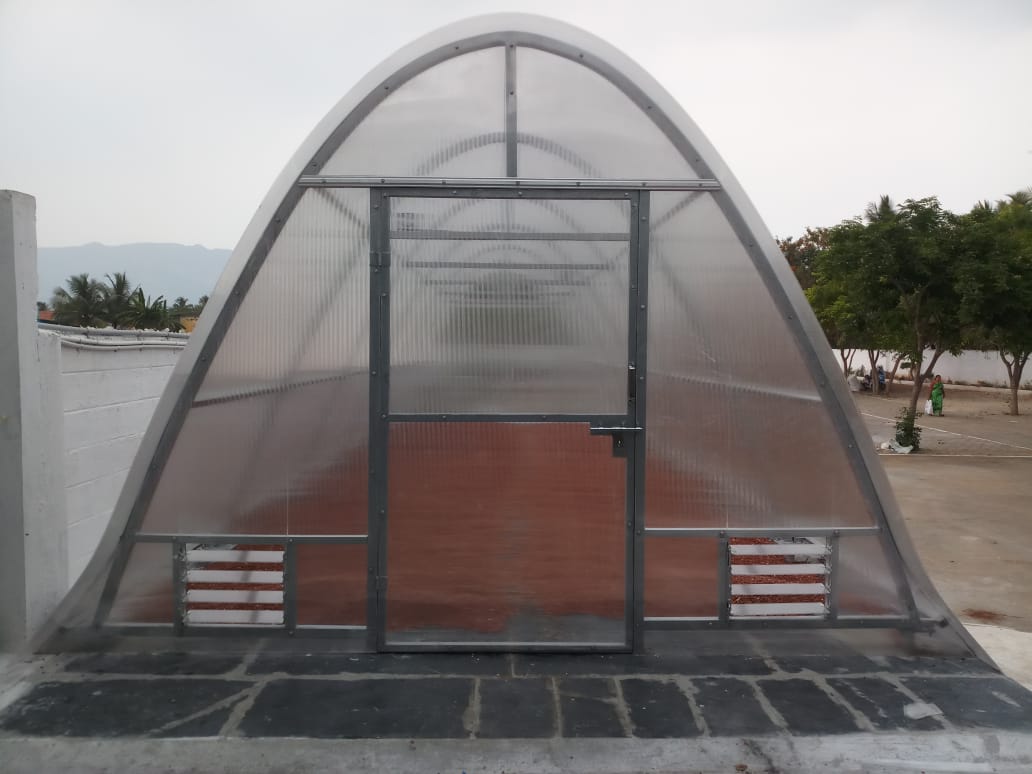

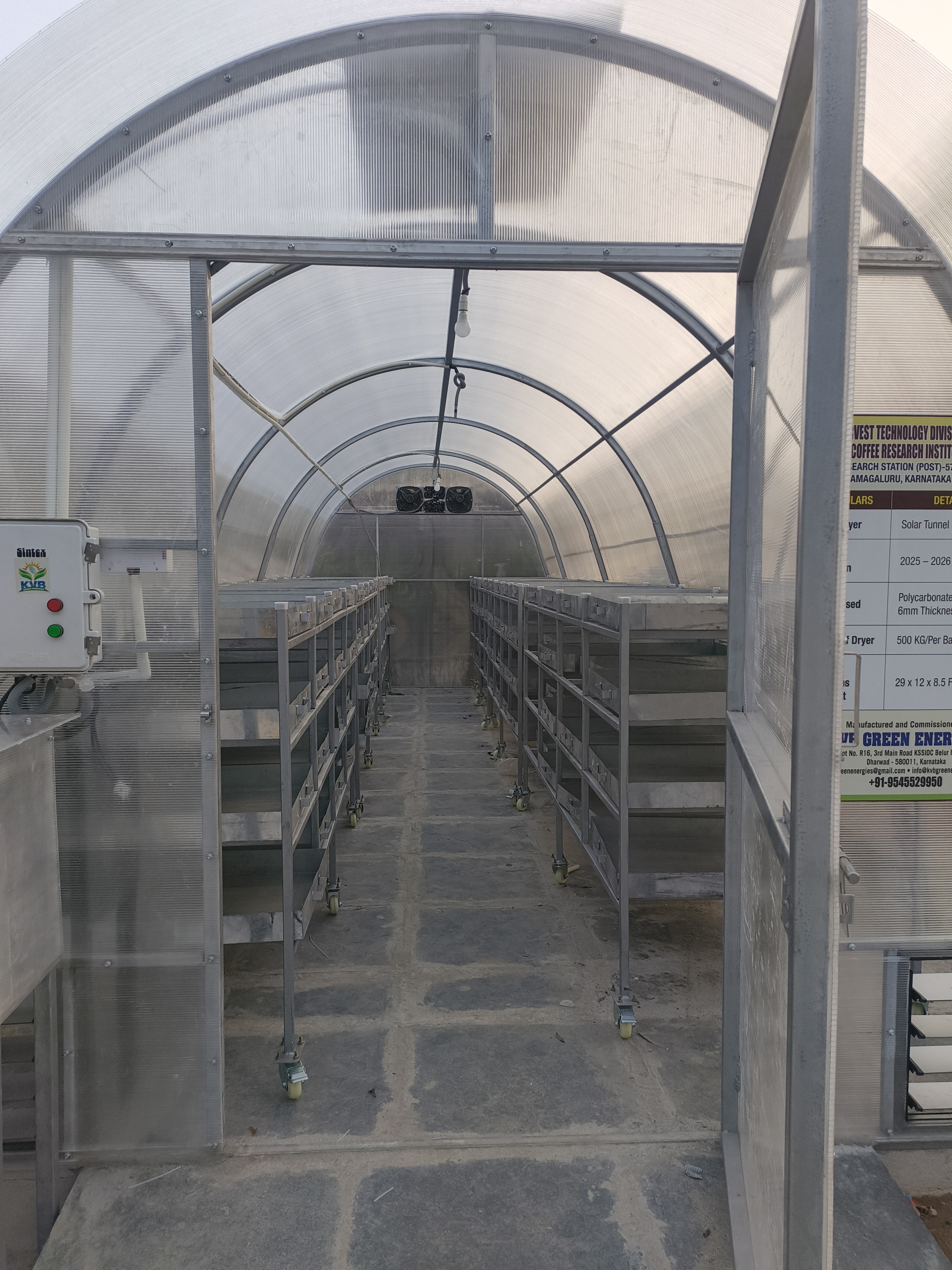

System in Action
